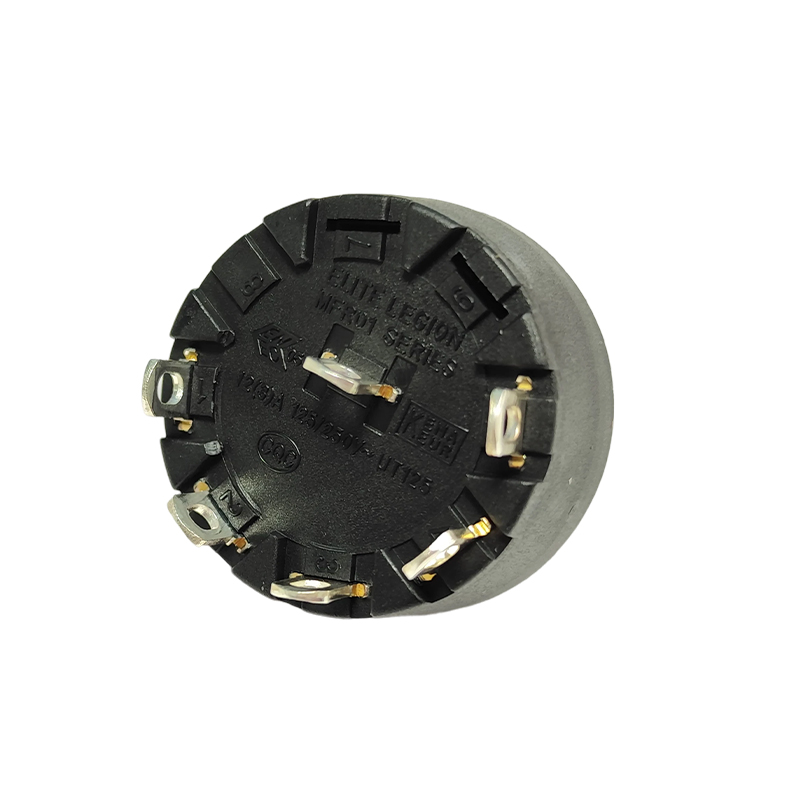

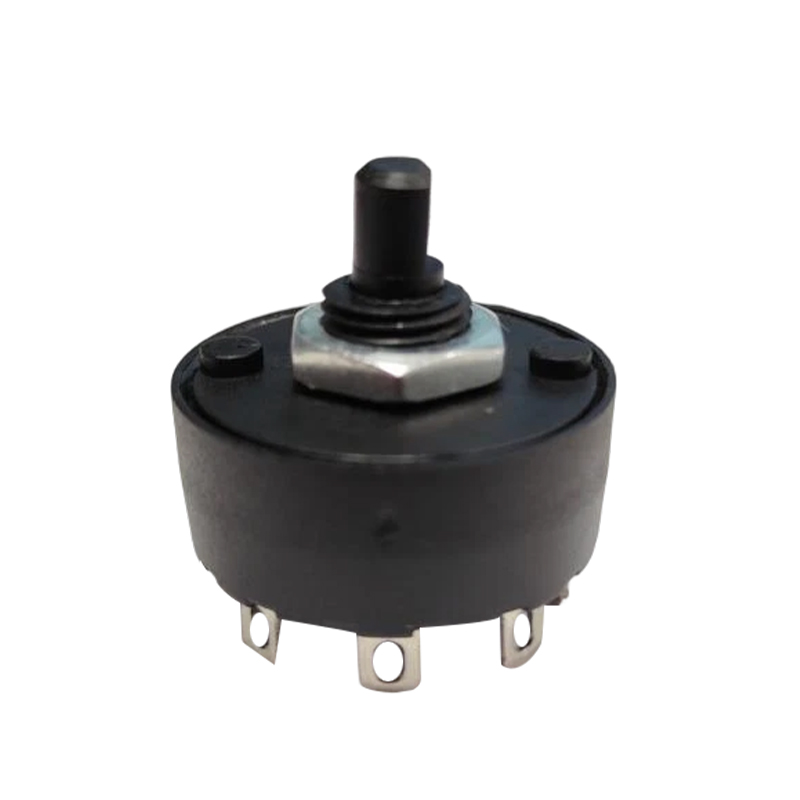

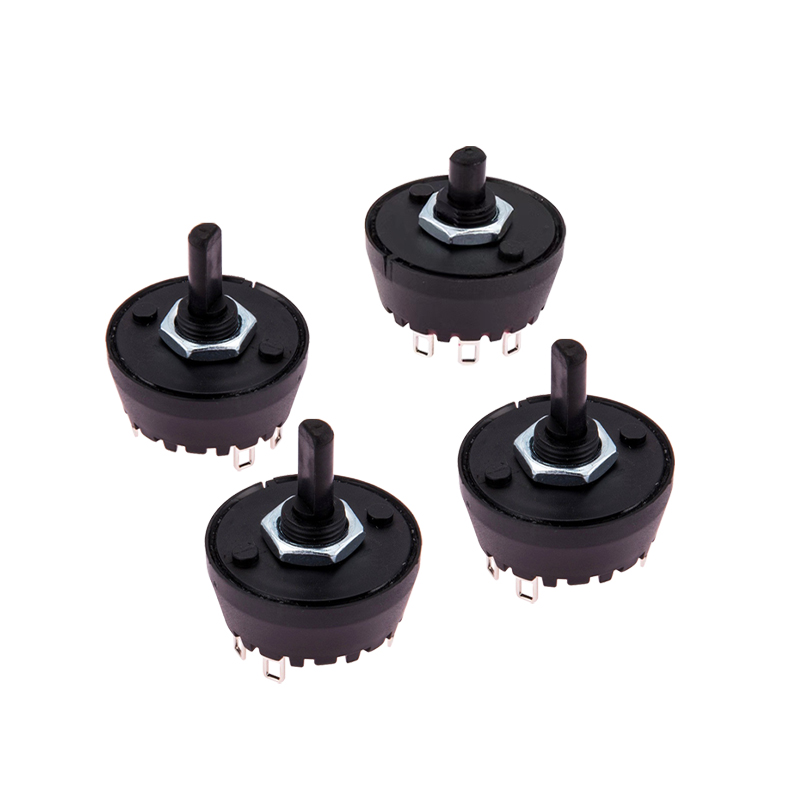

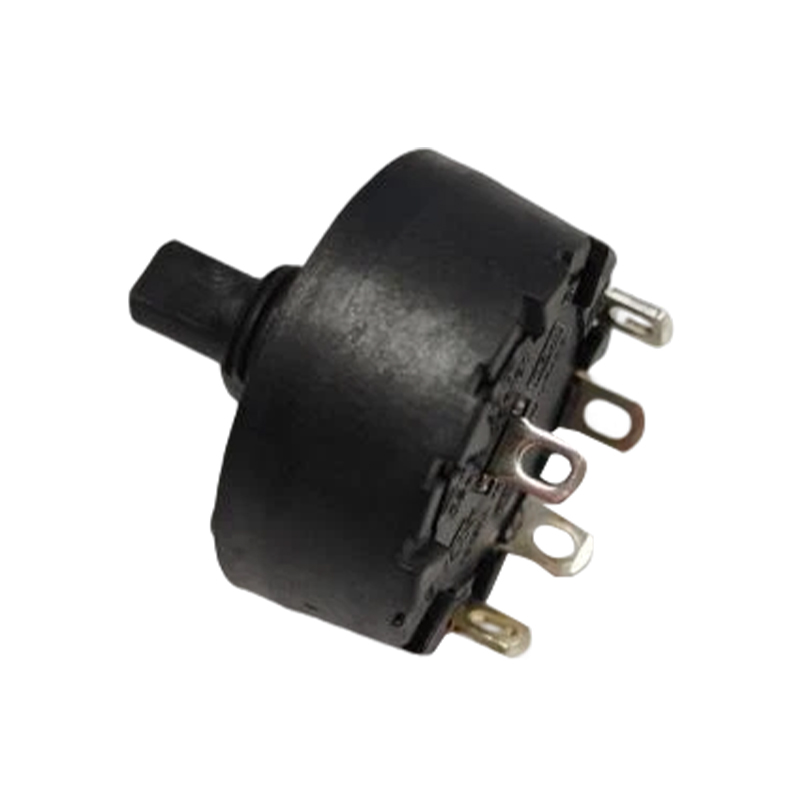

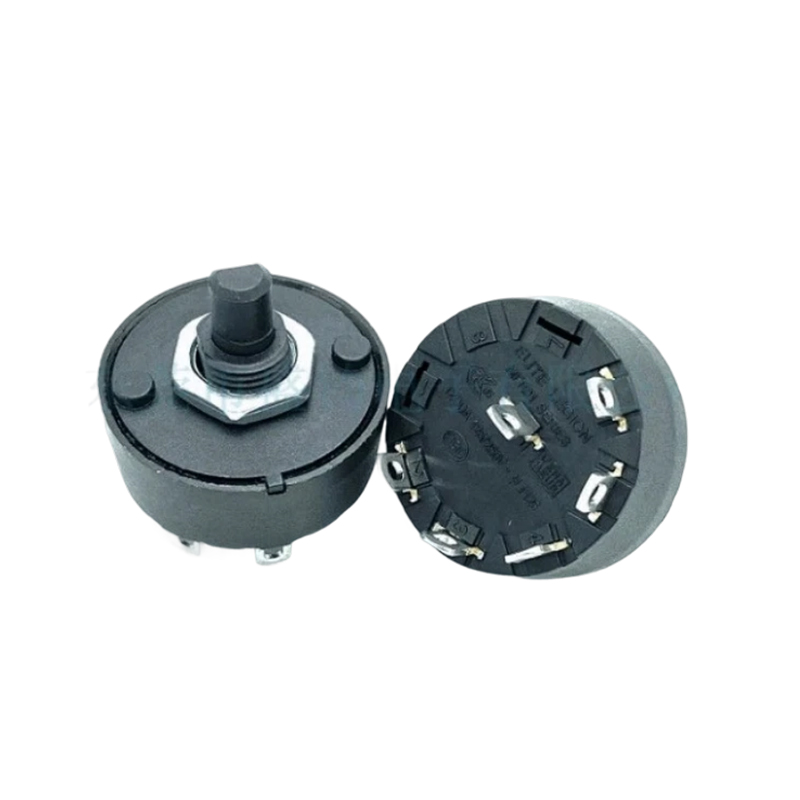

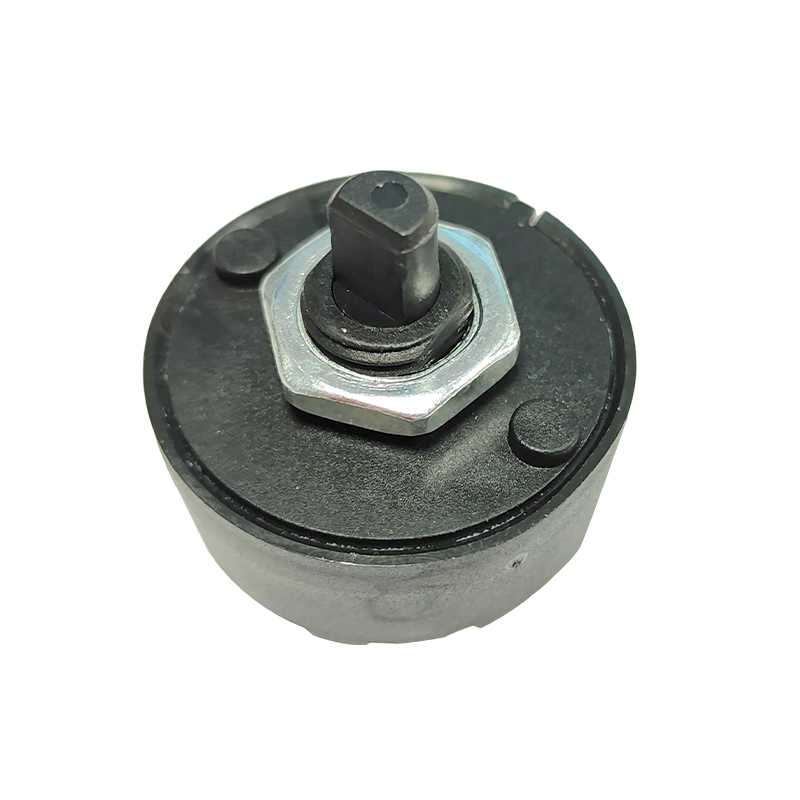

3 Speed With Pluse Rotary Switch

MFR01-A4M03L7LS-N

Diverse specifications and functions, environmentally friendly materials, support customization, additional mold opening is required, the initial mold opening fee shall be borne by the customer, and the two parties can agree to deduct the payment or return the mold fee after reaching a certain quantity. Due to the special nature of electronic parts, the specific mold opening fee shall be confirmed by communication with customer service).
12A 125/250VAC, silver-plated terminals, plastic fire-retardant PA66

Consult

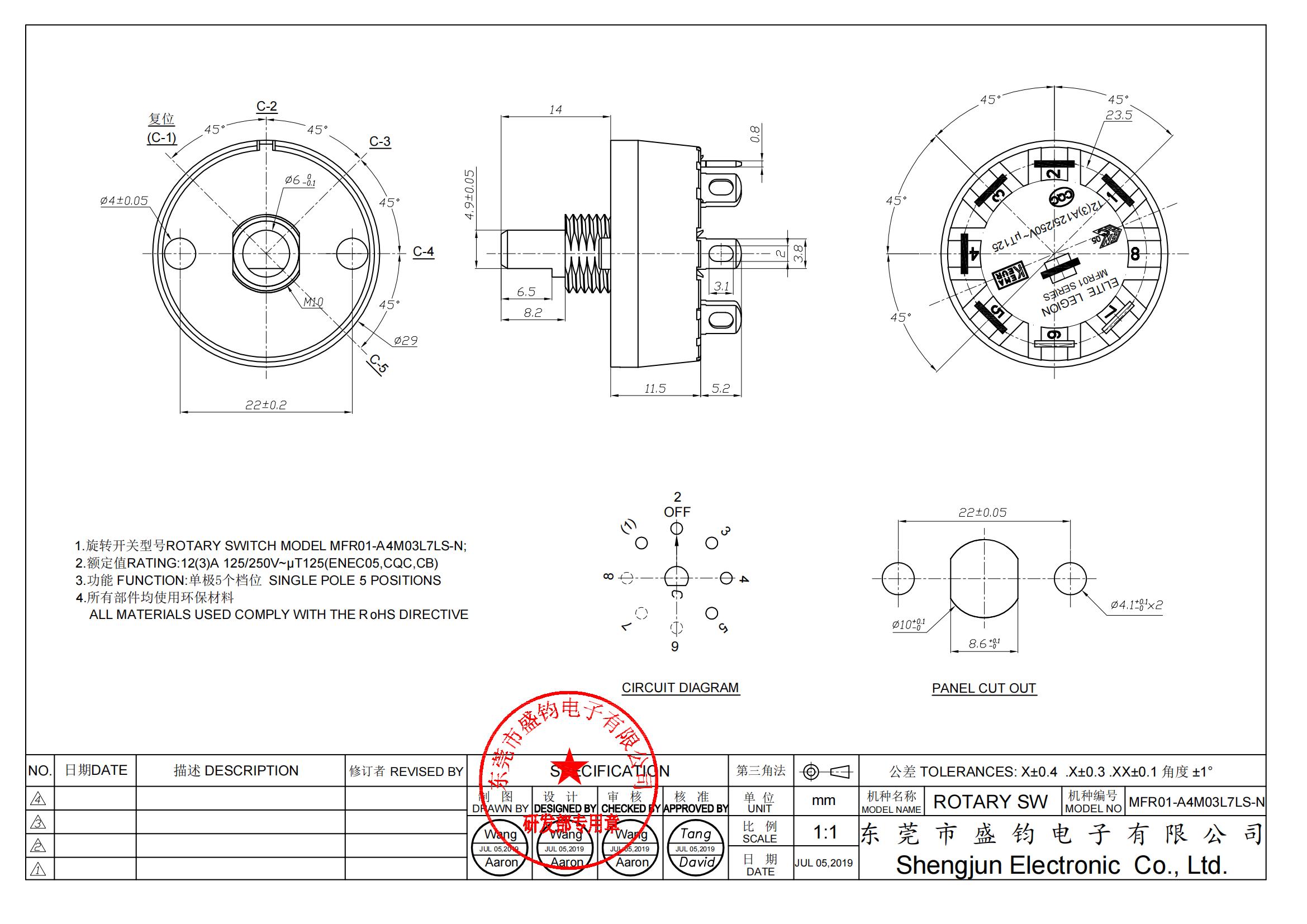

Features Technical Indicators Overall Dimension

Brand - ELITE LEGION
Model - MFR01 SERIES
RATING - 12A 125/250VAC
CERTIFICATION - ENEC, CB, CQC

ELECTRICAL PERFORMANCE
CONTACT RESISTANCE - 50mΩ Max
* At the test value of DC0.2V/1A, the contact resistance is less than 50mΩ
INSULATION RESISTANCE- 100MΩ Min 500VDC
* At the DC500V setting value, the insulation resistance of the open-circuited terminals or terminals of different circuits is greater than 100MΩ
DIELECTRIC STRENGTH - 1500VAC/Min
* When two terminals of different levels are open, the withstand voltage of 0.5mA 1500VAC for one minute is passed
* The terminals and other parts are subjected to 0.5mA for one minute 1500VAC withstand voltage
ELECTRICAL LIFE- 10,000 CYCLES+
TEMPERATURE TEST - <55℃

OPERATION FORCE:
NON—PULSE: 800gf±300gf PULSE: 1600gf±500gf

Actuator strength :
A static load of 5 kgf being applied in the operation direction for 15 seconds. There shall not be any troubles as deviation and bending.

TERMINAL STRENGTH :
A STATIC FORCE OF 2.27 KGF BEING APPLIED IN ONE DIRECTION ON THE TIP OF THE TERMINAL FOR 1 MINUTE. THE TERMINAL MAY BE DEFORMED, BUT SHALL NOT SUSTAIN ANY TROUBLE AS DEVIATION AND BREAKING OF TERMINAL, AND BREAKING OF INSULATION MATERIAL.
