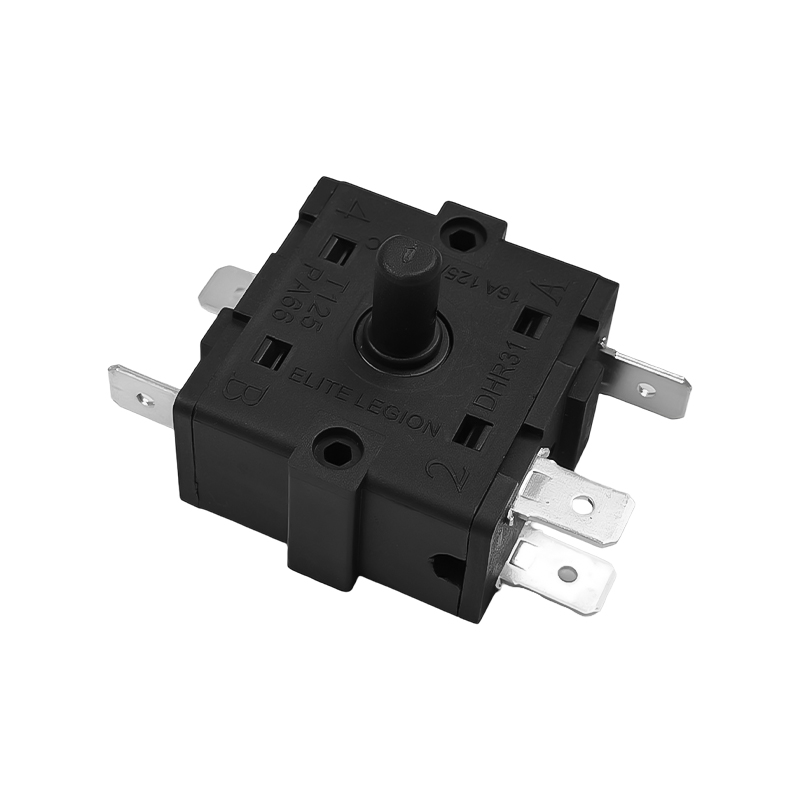

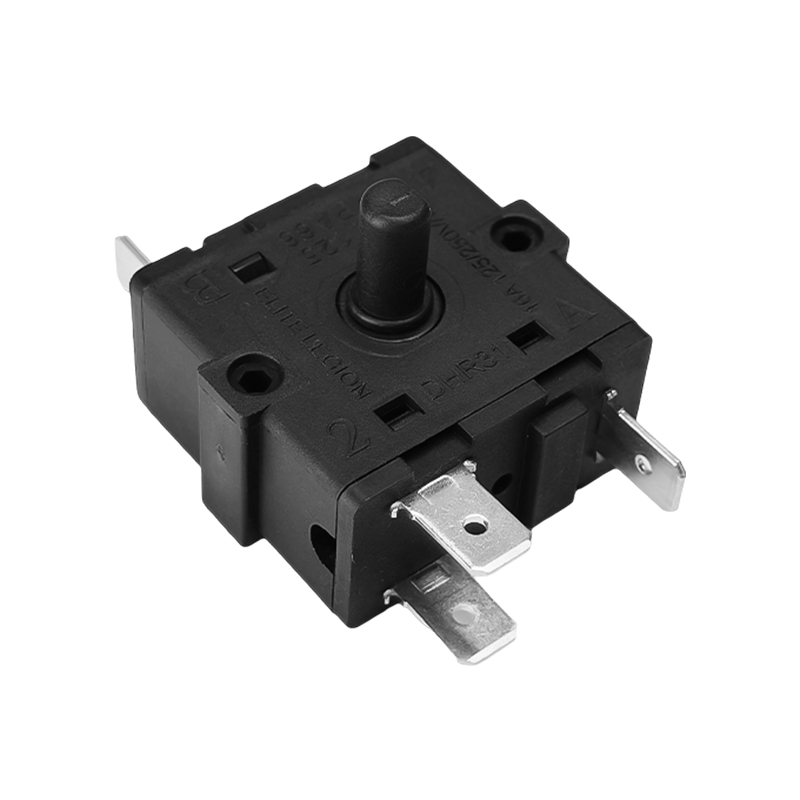

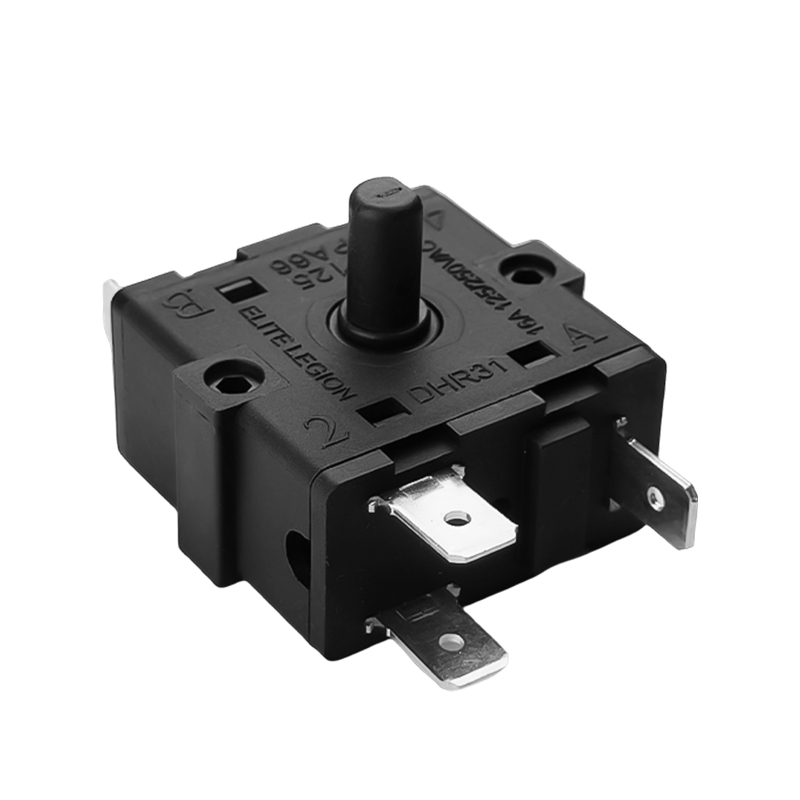

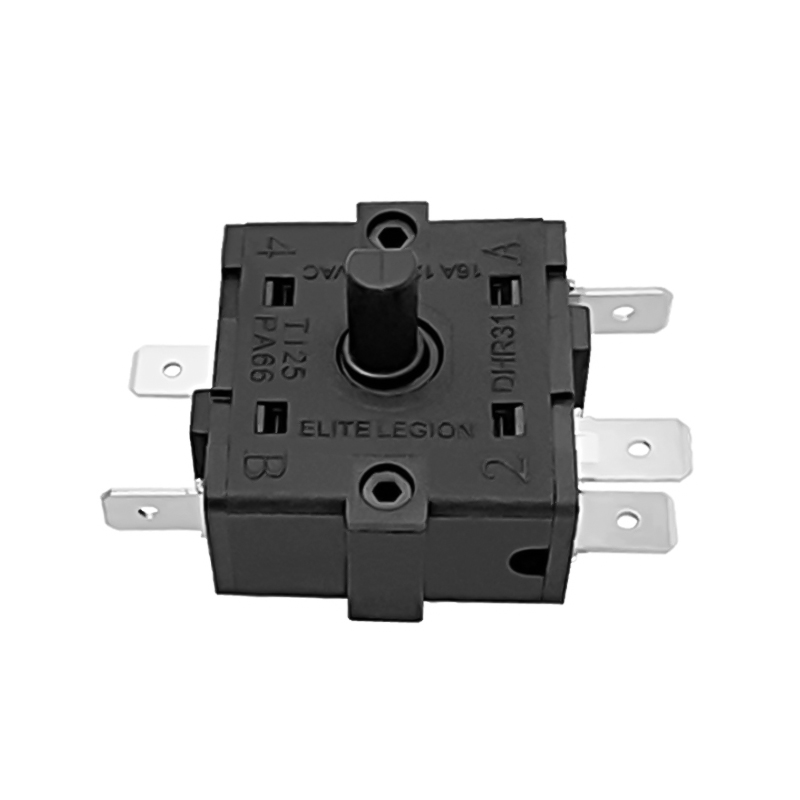

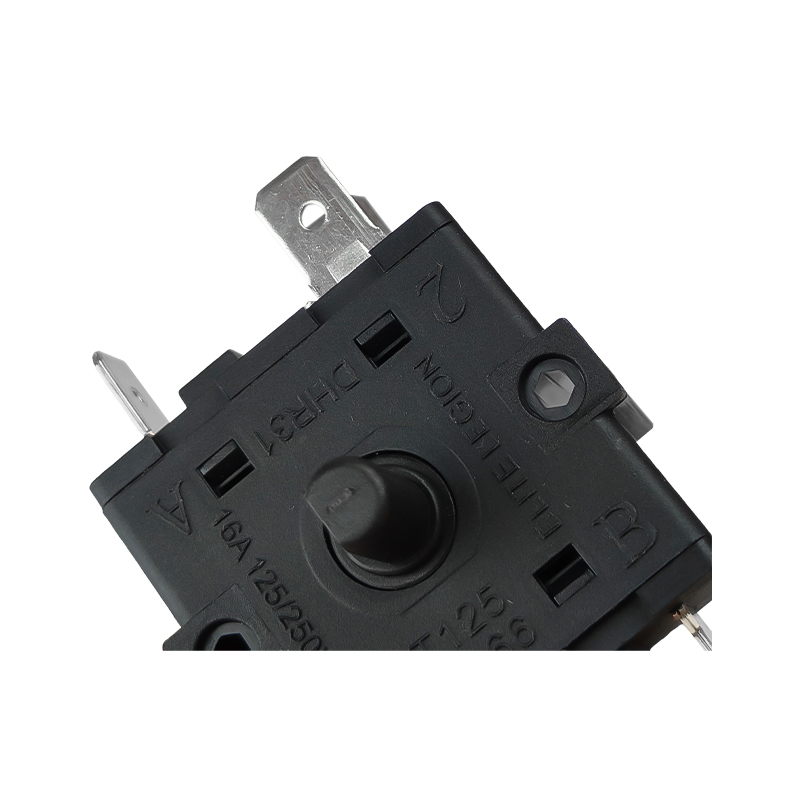

5 Pin 8 Speed Rotary Switch

DHR31-A2L1-D12

Diverse specifications and functions, environmentally friendly materials, support customization, additional mold opening is required, the initial mold opening fee shall be borne by the customer, and the two parties can agree to deduct the payment or return the mold fee after reaching a certain quantity. Due to the special nature of electronic parts, the specific mold opening fee shall be confirmed by communication with customer service).
16A 125/250VAC, silver-plated terminals, plastic fire-retardant PA66

Consult

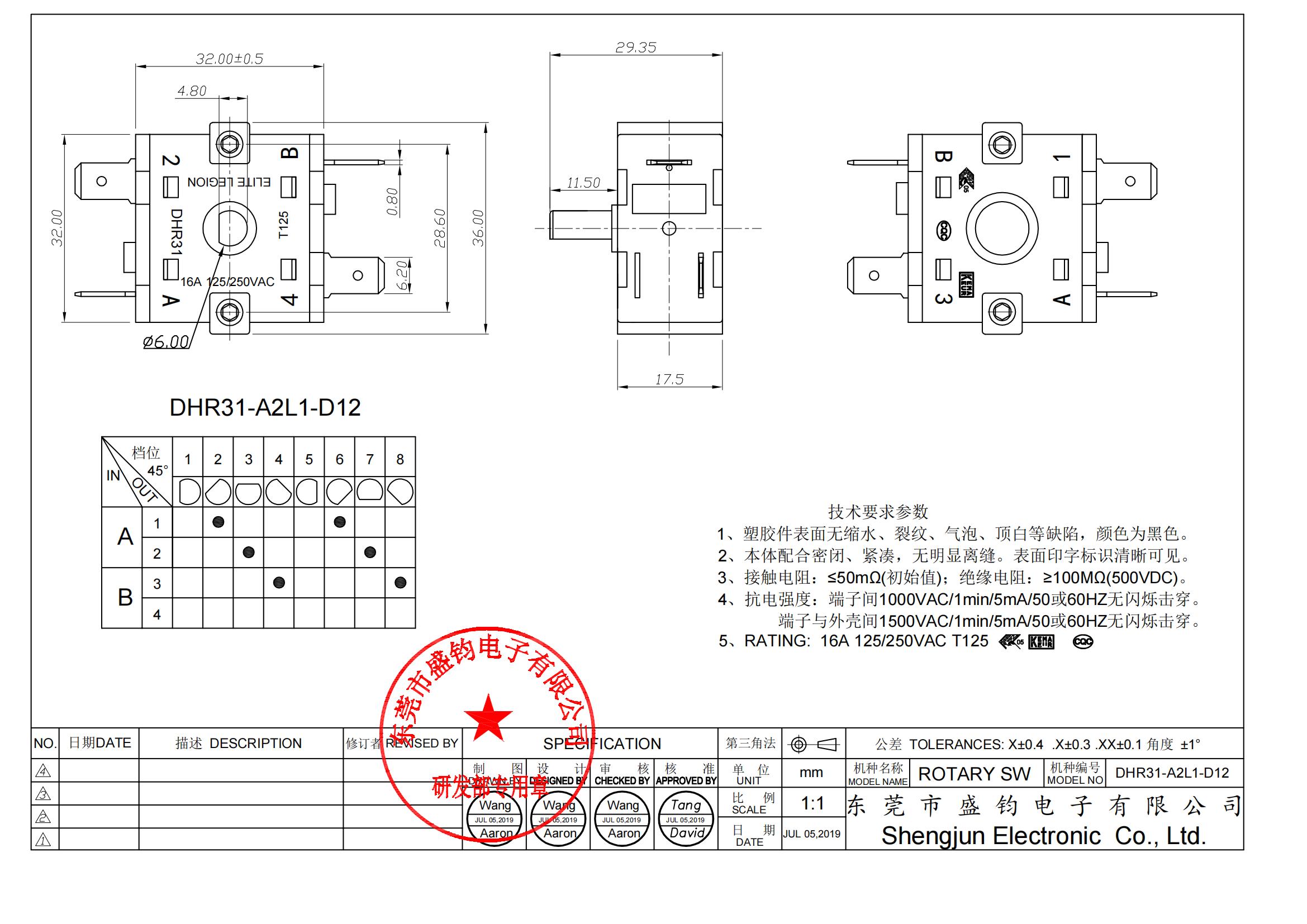

Features Technical Indicators Overall Dimension

Brand - ELITE LEGION
Model - DHR31 SERIES
RATING - 16A 125/250V
CERTIFICATION- ENEC, CB, CQC
ELECTRICAL PERFORMANCE
CONTACT RESISTANCE - 50mΩ Max
* Contact resistance is less than 50mΩ at the test value of DC0.2V/1A
INSULATION RESISTANCE- 100MΩ Min 500VDC
* When measuring the open terminals or terminals of different circuits at the setting value of DC500V, the insulation resistance is greater than 100MΩ
DIELECTRIC STRENGTH 1500VAC/Min
* When two terminals of different levels are open, the withstand voltage of 0.5mA 1500VAC is passed for one minute
* The terminals and other parts pass the withstand voltage of 0.5mA 1500VAC for one minute
ELECTRICAL LIFE- 10,000 CYCLES+

TERMINAL STRENGTH:
A STATIC LOAD OF 1 Kgf BEING APPLIED ON THE TIP OF TERMINAL IN ANY DIRECTION FOR 1 MINUTE. THE TERMINAL MAY BE DEFORMED BUT NO BACKLASH SHOULD BE OBSERVED.

SOLDERING:
IMMERSE THE TERMINAL LEADS INTO MOLTEN SOLDER AT TEMPERATURE OF 230℃ FOR 3±0.5 SECONDS. MORE THAN 75% OF PART IMMERSED SHOULD BE COVERED WITH SOLDER.

IMMERSE THE TERMINAL LEADS IN MOLTEN SOLDER AT TEMPERATURE OF 350℃ FOR 3±0.5 SECONDS. AND LEFT IN NORMAL TEMPERATURE AND HUMIDITY. NO TRANSFORMATION AND BACKLASH OF TERMINAL SHALL BE OBSERVED.

ACTUATOR STRENGTH:
A STATIC LOAD OF 5 Kgf BEING APPLIED IN THE OPERATION DIRECTION FOR 15 SECONDS. THERE SHALL NOT BE ANY TROUBLES AS DEVIATION AND BENDING.
